Photo Chemical Milling 0.1mm to 1mm Thickness Metallic Encoder Disk For Precision Engineer

What is a Metallic Encoder Disk?

A metallic encoder disk is a precision-engineered metal component used in optical and rotary encoders to convert rotational or linear motion into electrical signals. These disks feature precisely etched slots or patterns that allow sensors to detect position, speed, and direction — essential in automation, robotics, motor control, aerospace, and measuring systems.

Materials We Use

We manufacture metallic encoder disks using high-quality materials to ensure stability, durability, and excellent corrosion resistance:

Stainless Steel

Copper

Aluminum

Titanium

Specifications of Etched Metallic Encoder Disk

Thickness	0.1mm – 1.0mm
Outer Diameter	5mm – 300mm (customizable)
Etch Accuracy	±0.01mm (According to the thickness)
Surface Finish	Matte / Bright / Passivated
Pattern Type	Slots, lines, code patterns, or custom designs

Photo Chemical Milling Process

Our photo chemical milling (also known as photo etching) process uses photolithography and chemical etchants to remove selected metal areas with micron-level precision — no mechanical stress or burrs are produced. This method ensures sharp edges, consistent aperture sizes, and perfect pattern alignment, making it ideal for encoder applications that demand absolute accuracy.

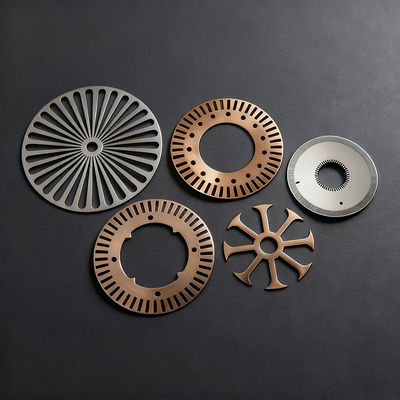

Photo Chemical Milling 0.1mm to 1mm Thickness Metallic Encoder Disk For Precision Engineer 1

Advantages of Our Photo Chemical Milling Technology

No burrs or deformation, maintaining optical accuracy
High repeatability for mass production
Fine details achievable — micro features down to 0.05mm
No tool wear or stress, unlike stamping or laser cutting
Quick prototyping & cost-effective for both small and large runs

Customization & OEM Service

We support custom metallic encoder disks based on your CAD drawings or design files (DWG, DXF, AI, PDF).
Our engineering team will assist in optimizing your design for etching efficiency and precision.

Send us your drawings or specifications today for a detailed quotation and free DFM evaluation.
